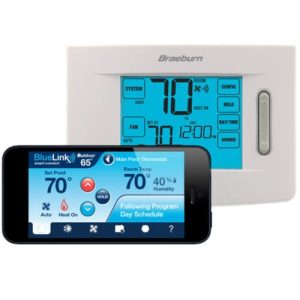

7320 Smart Wi-Fi Touchscreen Universal Thermostats Braeburn
$225.00
7320 Series Smart Wi-Fi Touchscreen Thermostat is a 7 Day, 5-2 Day or Non-Programmable Thermostat for conventional or heat pump systems with up to 3 stages of heat and 2 stages of cool with a 6.5 square inch display, auto changeover and wireless remote Braeburn® BlueLink™ .
- Description
- Additional information
Description
7320 Series Smart Wi-Fi Touchscreen Thermostat is a 7 Day, 5-2 Day or Non-Programmable Thermostat for conventional or heat pump systems with up to 3 stages of heat and 2 stages of cool with a 6.5 square inch display, auto changeover and wireless remote Braeburn® BlueLink™ .
- 7 days, 5-2 days or Non-Programmable
- Residential or commercial modes
- Auto or manual changeover
- Adjustable temperature limits
- Hardwire or battery powered
- Speedbar® multi-function button simplifies programming and set-up
- Programmable and circulating fan modes
- Wired remote sensor capability
- Auxiliary heat fossil fuel option
- Heat pump balance points
- Auxiliary “A” terminal for economizer, fresh air or output control
- Wireless remote sensor capability – indoor, outdoor or humidity
- Humidification and Dehumidification Control with 7330 Wireless Sensor (sold separately)
- “C” common wire required for Wi-Fi operation
- Free color contractor branding on quick reference instruction card
7320 Wi-Fi Touchscreen Thermostat Braeburn.pdf
7320 Wi-Fi Thermostat Manual Braeburn.pdf
Options For wired Sensors:
5390 Wired Indoor Temperature Sensor
Follow the link for the 5390 Wired Indoor Sensor
5490 Wired Outdoor Sensor
Follow the link for the 5490 Wired Outdoor Sensor
Additional information
Weight | 1.5 lbs |
---|---|
Dimensions | 2.25 × 6 × 5 in |
